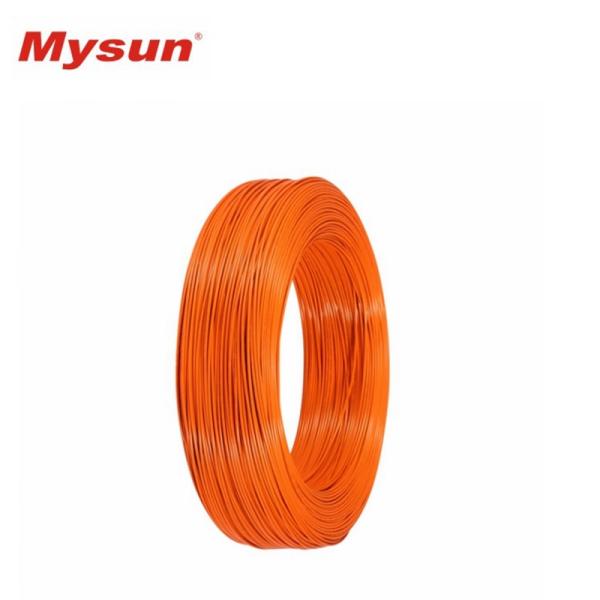

PVC insulated copper wire
Specifications:
Nominal voltage:300V
Temperature range: 105℃
Standard: UL 758
Insulation: XLPVC
Conductor: Tinned copper wire
Product features:
Our PVC insluation has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,high voltage resistance, aging resistance, long service life and soft and easy to install.
Product dimensions:
| Conductor | Insulation | Max.cond
resistance
(Ω/km) | Unit Length
(m)(Ft) |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal thickness (mm) | Diameter (mm) |
| 30 | 1/0.254 | 0.25 | 0.40 | 1.05 | 361 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 0.40 | 1.10 | 381 | 610/2000 |
| 28 | 1/0.32 | 0.32 | 0.39 | 1.10 | 227 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 | 610/2000 |
| 26 | 1/0.404 | 0.40 | 0.43 | 1.25 | 143 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 | 610/2000 |
| 24 | 1/0.511 | 0.51 | 0.42 | 1.35 | 89.3 | 610/2000 |
| 24 | 11/0.16 | 0.61 | 0.40 | 1.40 | 94.2 | 610/2000 |
| 24 | 7/0.20 | 0.60 | 0.41 | 1.40 | 94.2 | 610/2000 |
| 22 | 1/0.643 | 0.64 | 0.43 | 1.50 | 56.4 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.42 | 1.60 | 59.4 | 610/2000 |
| 22 | 7/0.254 | 0.76 | 0.42 | 1.60 | 59.4 | 610/2000 |
| 20 | 1/0.813 | 0.81 | 0.43 | 1.65 | 35.2 | 610/2000 |
| 20 | 26/0.16 | 0.94 | 0.42 | 1.80 | 36.7 | 610/2000 |
| 20 | 7/0.32 | 0.96 | 0.42 | 1.80 | 36.7 | 610/2000 |
| 18 | 1/1.024 | 1.02 | 0.41 | 1.85 | 22.2 | 610/2000 |
| 18 | 41/0.16 | 1.18 | 0.46 | 2.10 | 23.2 | 610/2000 |
| 18 | 7/0.404 | 1.20 | 0.45 | 2.10 | 23.2 | 610/2000 |
| 16 | 1/1.29 | 1.29 | 0.46 | 2.20 | 14.0 | 610/2000 |
| 16 | 26/0.254 | 1.49 | 0.46 | 2.40 | 14.6 | 610/2000 |
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
Product shoot:
Shipment:
1. by express
2. by sea
If you have your own shipper,you can tell me in advance.
My targert is to give my best serivce for you and hope we can have a good cooperation!
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
FAQ:
1, What’s the MOQ?
One roll. 100M/200M/300M/305M/500M/Roll.
2, How to get the samples?
We have most of the commonly used samples in Stock.
We can offer the free samples immediately.
3, What’s the payment terms?
LC, TT, Western Union, Money Gram and PayPal
4, What’s the delivery date?
Most of the commonly used products are in Stock. We can arrange it within one day.
We will arrange the delivery date as your requirement while the Bulk Production.
5, How to visit your factory/company?
We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
